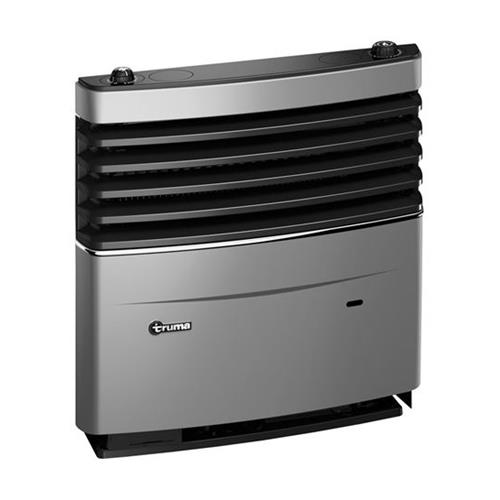

STOVE TRUMATIC S 3004 ACC ELECTRONIC

The new generation of stoves S is particularly simple from a point of view of assembly and maintenance.
The installations of hot air can be designed even better thanks to more efficient fans.
Furthermore, the new S stoves are more comfortable to use and impress with the new design.
Of course each stove S can also be operated self-sufficiently completely without power.

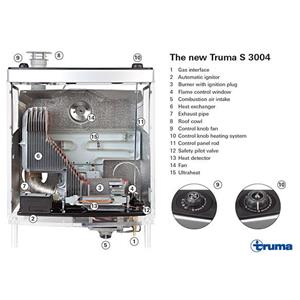

NEWS IN DETAIL

Installation and maintenance even more simplified
Cover can be easily removed thanks to the quick closure
Integrated invisibly
Locking plug precise and vibration resistant
Operation simple and safe two
Decade the difficult insertion rod in the control unit
The cable connections to the control unit fan does not have to be disconnected
Motor cover assembled to TN-3
Simplified installation (no cables and no entry
engine cover "an obstacle" during installation)
No more damage to cables
One measure of screws (fixing fan, strain relief, cover)
Slats optimized
Reinforced material, more solid
Rounded edges, powder coating
Rough cut faster for S 3004

Carter internal assembly removed
It is no longer possible to the hooked the crankcase mounting

TECHNICAL DATA

Type of gas: Liquid gas (propane / butane)
Operating pressure: 30 mbar (see label)
Nominal heat output: 3500 W
Gas consumption: 30-280 g / h
Additional indications conf. EN 624: Qn = 4.0 kW (Hs); 290 g / h; C51; I3B / P
Operating voltage: 1.5 V (automatic ignitor with battery operation)
Power consumption: 225 mW (power)
Weight (without fan): ca. 10.3 kg

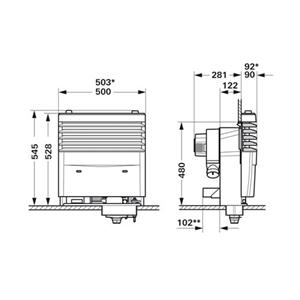

Dimensions (L x W x H including fan control unit): 500 x 371 x 545 mm

COMMAND ENHANCED

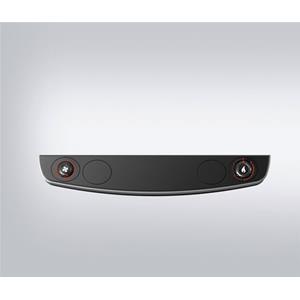

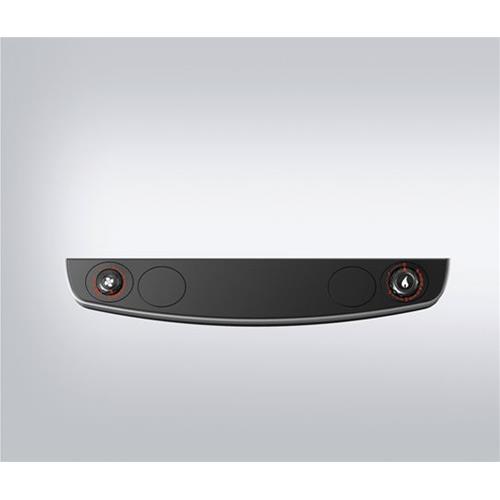

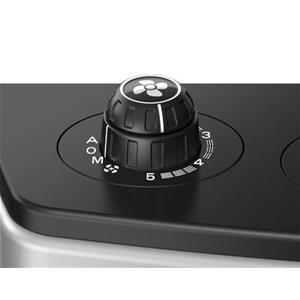

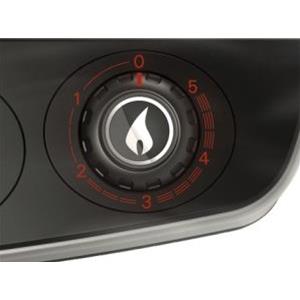

New control panel with ergonomic buttons
Better maneuverability
No longer recessed, but raised
 Lighting control gas and fan (optional)

Powering through touch sensor
Off times
Soft touch

control keys in rubber
surface structure manageable
Precise temperature setting thanks to the optimization of the control rod
Control rod in torsion test
run optimized thanks to the universal joint
Precise regulation even in low heating value
