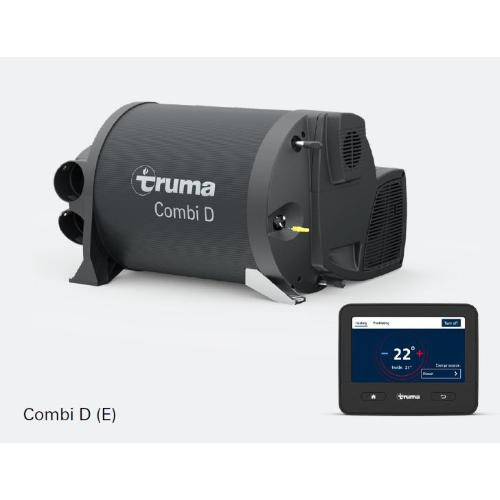

STOVE COMBI D6 CP PLUS OIL JG

Powerful heating and hot water with electric resistance (2 x 900 W)

The Combi D 6 heats the room and water with a single appliance; the 10-liter water tank is integrated. In winter, the water is heated together with the room, while in summer it is independent of the heating. Warm air is distributed throughout the vehicle through four outlets, ensuring a pleasant interior climate. It features a high-quality burner and reliably heats even while driving.

Reduced battery and diesel consumption thanks to more efficient 2-in-1 combustion.

Even more independent: heats at any altitude thanks to the integrated pressure sensor.

Contains:

1 Truma Combi 6 Diesel heater.

1 Truma inetx control and 6-meter control cable
1 Room temperature sensor, code 110 3402.00263, and cable

Power supply
Diesel fuel compliant with EN 590
Rated heat output in diesel operation
1000 W/2000 W/3000 W/4000 W/5000 W/6000 W
Rated heat output in electric operation
900 W/1800 W
Rated heat output in mixed operation
Max. 6900 W (Boost operation)
Fuel consumption
0.1 – 0.6 l/h
Current consumption (at 12 V): Heating and water tank operation
0.4 – 8.1 A
Current consumption (at 230 V)
3.9 A/7.8 A
Capacity
10 liters
Heating time (from approx. 15°C to approx. 60°C): Water tank
approx. 20 min
Heating time (from approx. 15°C to approx. 60°C): Heating and water tank according to EN 15033
approx. 80 min
Current consumption (at 12 V): Water tank heating
0.5 A
Air flow rate (free blow)
max. 287 m³/h
Quiet current
approx. 1 mA
CP plus quiescent current consumption (optional)
3 mA
Electrical resistance for FrostControl (optional)
max. 0.4 A
Pump pressure
max. 2.8 bar
System pressure
max. 4.5 bar
