EM203 ENDURO MOVER HANDLER MANUAL APPROACH KIT + 24A LITHIUM BATTERY

Mover Kit + 80A Agm Battery + 15A Battery Charger + Battery Box

Nr.1 HANDLER:

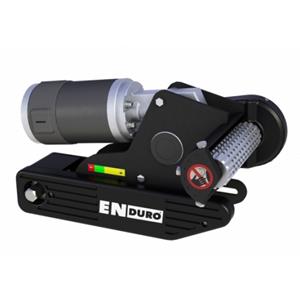

The ENDURO EM203 effortlessly maneuvers all popular single axle caravans and trailers
with a total weight of up to 1800 kg simply by remote control.

Application: for maneuvering caravans or trailers
Shaft width: 1800 to max. 2500mm
for max. Tire width: 205mm

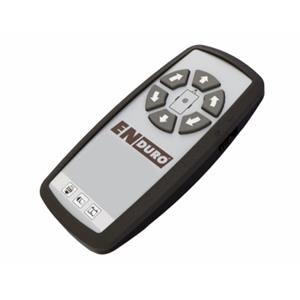

12V motorized rollers Incl. 12V control unit and remote control
Quick and easy installation on caravans / trailers
Very good ground clearance - no part at the bottom
Allows you to rotate the caravan 360° around its own axis
Safe hold on slopes with a total weight of 1450 kg and a 20% slope
Reliable maneuvering on different surfaces

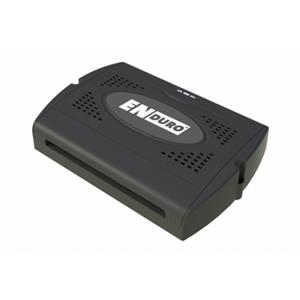

LED indicator on the control box in case of overload and malfunction
Splash and corrosion resistant
Scrolling the maneuvering rollers back and forth:
parallel approach of the rollers with the crank

Battery required 12V/min. 80Ah
Average current draw 20A
Max. Current Draw 100A
Speed about 10cm/sec.
Weight about 37 kg (without battery)
Max. Permissible total weight:
- One axle 1800 kg
1450 kg with 18% slope

No. 1 BATTERY:

AGM 80Ah large capacity auxiliary battery

AGM technology authorizes discharge rates of up to 100% of battery capacity.
Watertight, maintenance-free (very low self-discharge),
it works with sealed liquid electrolyte, therefore it can be transported in complete safety.
With adapter for self-tightening quick-release cable lugs and cable lugs with butterfly clip.
Discharge limit voltage 10.6V

Real capacity 83Amp Dimensions 350x182x167mm

Nr.1 BATTERY CHARGER:

12V Battery Charger
Delivers stable voltages even in the event of fluctuations in the electricity grid,
automatically adapts to all types of lead-acid batteries,
fast charge 4/8 hours of your choice and silent mode "night" function.
Adjustable end-of-charge voltage, overheating and short circuit protection.
Input 207-253V 50/60Hz End of charge voltage 14.4/14.8V (+/- 0.05V)
Float voltage Charge 13.80V (+/- 0.05V)

Maximum battery capacity 150A, maximum charge current 15Ah
Dimensions 200x60x260mm Weight 2.4Kg

Nr.1 BATTERY BOX:

Dimensions 410X200X200MM

NB. Excluding the Enduro EM203, without prejudice to all the technical and dimensional characteristics which will remain unchanged,
the aesthetics or the brand of all the supplied accessories (Battery, Battery charger, Cassette) may vary,
which may be of a different brand than the one displayed based on the actual availability of the supplier.
