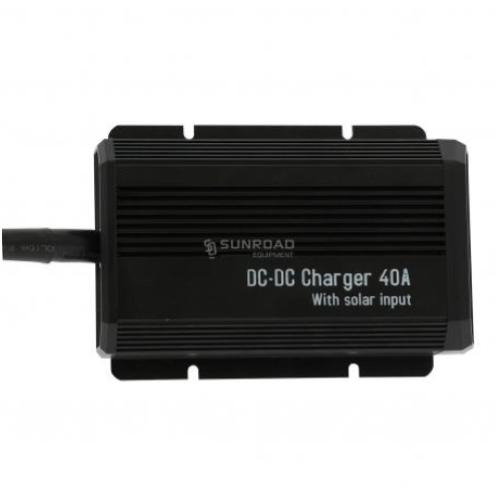

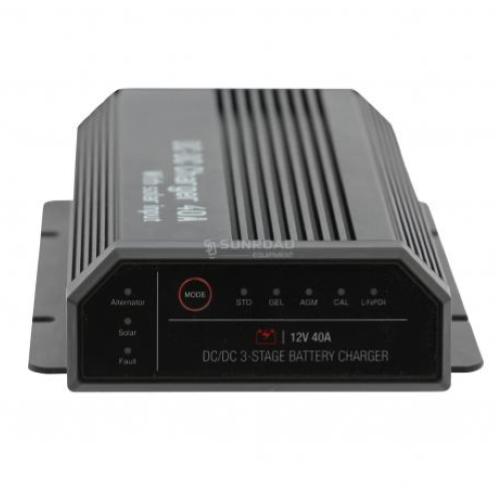

CONVERTITORE DC-DC 12V + REG. SOLARE EZA POWER MBB1240 F1 40A

Ideal solution for maximum energy independence
A smart charger for continuous power
The EZA F1 40A DC/DC charger is a next-generation DC-DC converter designed to optimize auxiliary battery charging for campers, campervans, and recreational vehicles. It combines alternator charging with solar panel charging, ensuring fast and efficient charging, even on the go.

Equipped with a 500W MPPT regulator, it maximizes the use of available solar energy for optimal autonomy. It is compatible with all auxiliary battery technologies (lead-acid, gel, AGM, lithium), offering a reliable and versatile solution for your electrical system.

Compatible with modern vehicles and all batteries
The F1 40A DC/DC charger is designed to work with the latest vehicles, including those equipped with Euro 6 and Euro 6+ smart alternators, which require optimized charge management. It automatically adjusts the input voltage to ensure stable and efficient charging.

It supports all auxiliary battery technologies, making it an ideal solution for any system:

Lead-acid, GEL, and AGM batteries: gradual and safe charging
Lithium batteries: optimized rapid charging and maximum performance
Fast and safe charging for optimal range
With a nominal charging current of 40 A, the DCDC 40 A F1 ensures accelerated charging, allowing rapid energy recovery even on short trips. Thanks to the adjustable cut-off threshold (11.8-12.8 V) and the floating cut-off threshold of 13.6 V, it ensures the perfect balance between performance and battery conservation.

It is equipped with numerous protections to ensure safe operation:

Overvoltage protection
Overheating protection
Reverse polarity protection
Undervoltage protection
With a no-load self-discharge of just 9 mA, it minimizes energy loss when not in use, thus contributing to optimized energy management.

Compact, rugged, and designed for extreme environments
The DCDC 40 A F1 EZA is designed to operate in the most demanding conditions. Its high degree of protection ensures excellent resistance to dust, humidity, and vibration, making it ideal for use in campers or harsh environments.

With compact dimensions of 184 x 129 x 43 mm, it easily fits into any utility compartment, allowing you to optimize space without compromising performance.

Nominal charging current: 40 A
Alternator input voltage: 9-32 V
Solar input voltage: 10-32 V
Alternator compatibility: Euro 6 / Euro 6+
Charging type: Mixed (alternator + solar)
Battery type: Lead-acid, GEL, AGM, Lithium
Solar regulator: MPPT / 500 W
Idle self-discharge: 9 mA
Cut-off threshold: 11.8-12.8 V
Trip threshold: 13.6 V
Protection against overvoltage, overheating, reverse polarity, and low voltage
Dimensions: 184 x 129 x 43 mm
Protection rating: High, designed for harsh environments
Other features

Idle self-discharge: 9 mA
Net weight: 0.95 kg
