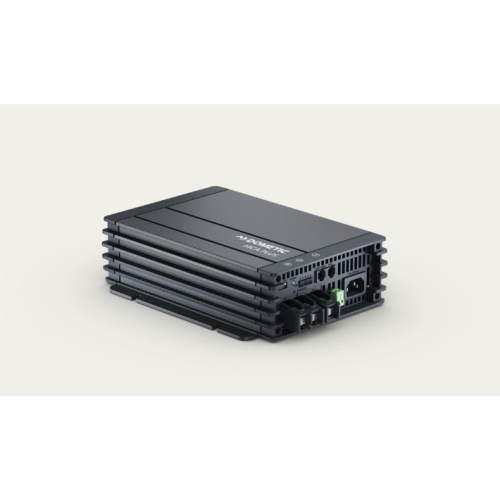

CARICA BATTERIE BCN DOMETIC PERFECTCHARGE MCA PLUS 1225

BCN DOMETIC PERFECTCHARGE MCA PLUS 1225 BATTERY CHARGER

Cutting-edge charging technology, ultra-compact design, N-BUS compatibility, and lightweight: this 25-A automatic battery charger is the ideal choice for travelers. It can charge three batteries simultaneously and can be used worldwide thanks to its 110-230 V input voltage range. Ideal for LiFePO4 and lead-acid service batteries (AGM, gel, flooded).
Features
01
Charging current 25 A
02
Three battery outputs for charging up to three batteries simultaneously
03
N-BUS and CI-BUS connectivity facilitates control via wall display or app
04
Suitable for LiFePO4 and lead-acid batteries thanks to selectable charging curves
05
OPTICHARGE algorithm for flexible configuration and battery-specific charging
06
Optimized 6-step charging curve
07
Compact and lightweight design with convenient screw connections

Dimensions: Product depth [mm] 238
Dimensions: Product height [mm] 63
Dimensions: Product width [mm] 179
Net weight [kg] 1.70

Input voltage (AC), [V] 110/230
Rated input power (AC), [W] 410
Input frequency, [Hz] 50/60
Battery type: AGM
IP class: IP20

Energy efficiency, [%] =87
Continuous power 25°C, [W] 370
Operating temperature min, [°C] -20
Operating temperature max, [°C] 50

Connectivity TypeCIBUS
