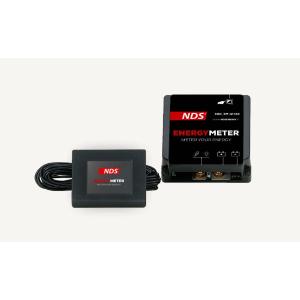

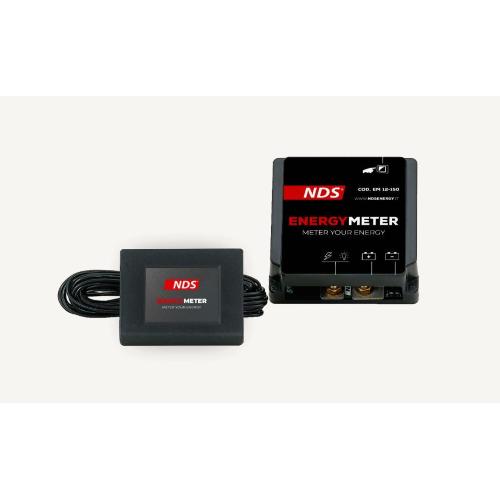

ENERGY METER 12V 100A CON 1 DISPLAY

ENERGYMETER
With the ENERGYMETER display you always keep the charge status of any LifePO4 battery under control.
Soon Energy Meter will also be able to monitor Lead/Acid batteries (AGM, Gel, Free Acid). The system detects and displays input and output voltage and current from one or more 12V service batteries (connected in parallel to each other).
If you want to manage and monitor multiple Lead/Acid batteries separately choose iManager

The practical touch screen display allows you to set the technology of the connected batteries and control the State of Charge (SoC) and consumption in real time in a simple and immediate way.

BLACK BOX
Nominal voltage 12V
Maximum capacity supported 600Ah
Maximum current supported 150A
Current range -150A/+150A ±10%
Dimensions 125x123x47mm
Weight 480g
Working temperature -20°C/+65°C
Average consumption Active Device 3mA@12V
Average consumption Stand-by device 1mA@12V

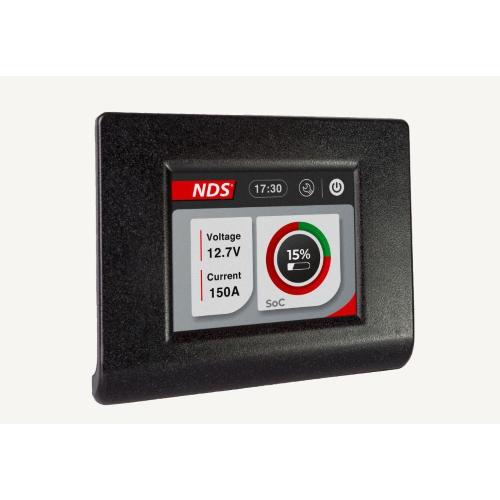

DISPLAY
2.83? 262k COLOR TFT Display Technology WITH Touch Screen
Average consumption 73mA @ MAX brightness 33mA @ Display OFF
8mA at night
Connection type RS232 with 8m cable
Operating temperature -10°C / +70°C
Dimensions 100x80x11mm
Weight 55g
