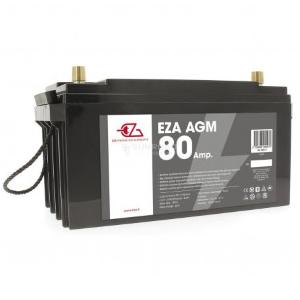

AUXILIARY BATTERY AGM 80AH POWERLINE2

" AGM " type auxiliary battery specially adapted to the world of leisure (captive liquid electrolyte).
The "AGM" technology allows you to discharge up to 100% of the battery capacity to exploit the maximum energy available.
Waterproof and maintenance-free (very low self-discharge: 1 to 3% per year).
Protected against pressure variations and designed to avoid gas accumulation inside the coil.
Discharge limit voltage: 10.6V. Discharge rate max. up to 100%. With adapters for attaching self-locking flaps and butterfly collar flaps. Effective capacity 83Ah. Dimensions (LxHxD): 350 x 179 x 167 mm. Weight: 24kg.

Other characteristics

TECHNOLOGY : AGM
CAPACITY : 83Ah
END OF CHARGE VOLTAGE: 13.8V
RATED VOLTAGE : 13.5V
NO-LOAD SELF-DISCHARGE : <1 to 3%/year
RECOMMENDED UNLOADING SPEED : 80%
Maximum discharge current in PIC (3 sec.): 800A
MAXIMUM RECOMMENDED CHARGE CURRENT : 24A
WORKING TEMPERATURE DURING DISCHARGE : -
WORKING TEMPERATURE DURING CHARGING : -
COMMUNICATION METHODS : -
PARALLEL : MAX 4 UNITS
SERIES ASSEMBLY : MAX 4 UNITS
POSITION / FIXATION ALLOWED : STANDING / LYING DOWN
TYPE OF INSTALLATION : INTERNAL
CASE : PLASTIC
TERMINAL TYPE : M6
CIRCUIT BREAKER : NO
NUMBER OF CYCLES : From 400 to 600 cycles
PRODUCT DIMENSIONS IN MM (L x W x H): 350x167x199
NET WEIGHT : 22,5KG
SUPPLIED WITH: terminals + terminal covers + carrying handles
CERTIFICATIONS, APPROVALS: CE, R10 environmental compatibility
EN STANDARD FORMAT (L0-L1-L2-L3-L4-L5) : L5
WARRANTY : 2 YEARS
Power : 80Ah
